Convert Your Washing Machine to Pedal Power Part 2 - Taking Everything Apart - Understanding Design (Top-Loader)

Starting the Conversion - Break Up to Make Up

MACHINE

This is the really easy, fun part for me and it's a great way to start because it is going to familiarise you with your washing machine and how it works. In this section we are going to figure out what bits we can take off, what to ignore and what components are essential to the workings of our new machine. This is also a great exercise in thinking-on-your-feet because you can sometimes find, as I did in this case, unexpected, specific items for reuse that can save both time and money on the project.

Convert a broken washing machine to Pedal Power - removal


As I'd already established which side of the machine the drive was on, my first step was to remove that side panel of the machine. On our 'new' top-loader the side panel was held in place with several bolts at the machine's rear BUT I initially was unaware of a front screw at the very base of the panel which also needed to be removed. Thus I learned a valuable lesson: scrutinize the whole of the component prior to removal!

Convert a broken washing machine to Pedal Power - hidden bolts



Convert a broken washing machine to Pedal Power - front loader


A Note About Front-Loaders

If this is the type of machine you are to be converting then it is much easier to access the motor and drive assembly simply by removing the rear panel. As front-loaders are in general more common than top loaders, this is perhaps the most available machine you will be likely to convert. However, as the seals on front loaders can wear out over time and because of the versatility of adding washing and water to the top-loader, for say a mixed load of washing,  these make for excellent conversions so do look out for them!





Back to the Present - Top Loader

Remove Motor - Convert a broken washing machine to Pedal Power
Once the side panel was off, the motor and drive was visible. The first thing to do was to remove the motor and drive belt, the motor is quite heavy so it may need supporting to remove the bolts - I always keep the old fasteners (nuts, bolts, washers, screws) for use in later projects. The new drive from the bicycle was going to be attached to the face of the large pulley that was connected to the drum of the machine.  Something that was very evident was how freely the drum rotated now the motor was removed.

I also removed all wiring that was readily accessible either disconnecting the contacts or simply snipping the wire out with cutters.

Remove concrete - Convert a broken washing machine to Pedal Power


On the side of the drum could be seen a large concrete block and I could get my hand around the other side of the drum and feel a similar one on the opposite side. These are used to help damp out vibration especially when the drum is being driven at elevated speeds i.e. spin drying. The more sedate speeds of pedal-power render these blocks useless and so I removed it from the drive side. The block was heavy and so I had to be ready to support the weight when the last bolt was removed, again keeping the bolts and washers for later use.

Washing machine to pedal power conversion

Washing machine to pedal power conversionWith the one block off one could see that the drum moves on suspension springs and/or hydraulic dampers these are another part of vibration removal to prevent the machine from waltzing around the kitchen or utility room again I wanted to remove them but before doing so I needed to support the drum directly to the chassis of the machine.

The drum does not need to have any ability to move freely in its supports. With our old machine I had fashioned two large wooden wedges (see left) which were forced between the outer drum and the steel walls of the machine body. I thus decided that with this conversion I would fix the drum to the chassis.


Important Note:
Many automatic washing machines have two steel 'transport brackets' securing the drum to the rigid carcass of the machine. As the name suggests this is to prevent the suspended drum from bashing  about whilst being shipped. If you are fortunate to have these you can re-attach them for pedal power.

The second side panel can now be removed and the concrete ballast dealt with similarly. However at this point I realised that the concrete block support brackets would make excellent anchoring brackets for the drum.

Washing machine to pedal power conversion - what to remove


This provided some fun smashing up the concrete and why I need safety equipment! At this point I also cleaned out all the now superfluous wiring from the old heating system.

Reuse - Washing machine to pedal power conversion


Brackets upcycled - Washing machine to pedal power conversion
As you will see in the following articles, these basic brackets were modified, bent and drilled to become the drum fixing brackets. This is an example of how you can 'eat (almost) all the buffalo' in recuperation projects. One wit on my YouTube channel did suggest that we could have made a cowboy garden statue out of the concrete!

With the second side of the machine removed we can now see the pump. This can be ignored because for draining the machine the flexible hose is simply lowered below the level of the drum and the water will pass through the pump chamber with little or no interference. Removing the pump would mean reconnecting the exit hose from the drum to the flexible drain hose and these diameters are not the same. This is a case where knowing when to leave well alone is really important!

Washing machine to pedal power conversion - What not to remove

Specific Design Considerations

N.B. With both sides of the machine removed it is very clear how flexible this design of machine becomes, i.e. that the side panels contribute markedly to the structure of the machine.  You should therefore not attempt to use the machine even with pedal power without these side panels in place as the machine would collapse!  Another observation on the design is that the drum is supported on bearings on both sides. A front-loading machine has no bearing on the door side, ultimately meaning it is less robust! Again this is a consideration for long-term pedal power, that you should try to obtain a top-loader.

BICYCLE

This model was one I had picked up just as its owner was about to throw it in the skip at our local dump. He apologised for having already removed the Shimano gearing system but I told him what I was going to use it for. He was very pleased that his well-used bicycle was going to get a second life rather than end in the jaws of a crusher! Although very much unroadworthy it actually looks really good after a shower of rain.

Washing machine to pedal power conversion

In the following articles I will go into more detail on what to remove because I have specific film footage to go with the exercise. Here therefore, I am just going to give some general pointers as to dismantling. The first thing to note, particularly if like us you are living at the seaside, where there are permanent caravans and second homes, is that most of these bikes will have been ridden along the beach, sometimes even in the sea and in true holiday spirit, completely neglected and left to rust ,

Recuperated bicycle - Washing machine to pedal power conversion


With the exception of a lovely but unrideable one I inherited from my neighbour and which we have been using on our previous washing machine, most of the bikes we find are in the 'cheap and cheerful category. We usually get them when the owner has returned for the next holiday and found them in a sad state and carted them off to be dumped. In the main therefore these are 'cheap' supermarket bicycles made for a price with low end saddles and accessories but actually with some superb engineering design and manufacture which goes into individual mechanical parts. This makes them the ultimate recuperation item!

Bike part removal - Washing machine to pedal power conversion

When dismantling a bicycle therefore, you should consider that most of the bolts nuts and screws will probably have seized and you should arm yourself with a release oil like WD40, with which to un-seize them.


If you have them, bicycle spanners can be very useful, with luck, as we did once, you may even pick up a bicycle with a tool kit still in situ.

And now here's the film of this procedure:


Washing machine to pedal power conversion
In the next article we shall start to put everything back together and be well on our way to having a smart and fully functioning system.

If you read this article and found it interesting then share it with your friends on social media or suchlike. Please also feel free to ask questions and or make comments and if you found this helpful and would like to support this site you can always Buy Me a Coffee at ko-fi.com
You can also find all my films Youtube and also now on Odysee

Until next time and from a sunny day in Normandie,

Cheers, Andy

© Andy Colley 2022

RELATED ARTICLES


Convert Your Washing Machine to Pedal Power Part 3 - Putting It Back Together (Top-Loader)

Now that the machine was stripped of the superfluous bits...read more


Convert Your Washing Machine to Pedal Power Part 1 - Getting Started (Top-Loader)

The most frequent reasons for machine failure is of an electrical or electronic nature. Neither of these preclude using it, as long as the drum is watertight. Even if you don't already own a broken machine I can guarantee that one of your neighbours, friends.....read more

How to Convert your Washing Machine to Pedal Power 1 - The Basic Model (Front-Loader)

The electronic fault that arose in our automatic washing machine rendered it useless. I knew that the machine was watertight and...read more


How to Convert your Washing Machine to Pedal Power Basic Model 2 - Modifications (Front-Loader

We’ve exhibited this machine on many occasions and the most frequent comment from spectators has been ‘let’s see you spin dry now!’...read more

Convert Your Washing Machine to Pedal Power Part 1 (Top-Loader) - Getting Started

After over ten years of pedalling, our old washing machine finally threw in the (freshly laundered) towel - it had sprung a leak which could not be repaired. Some years previously I had actually managed to get hold of a top-loading machine from the local tip, this machine had been dumped due to electrical failure but the mechanical parts were in good working order and it was watertight. I have also had several comments from subscribers asking for a step-by-step description of the conversion of a washing machine to pedal power and so I decided with this new project, this was a great opportunity. My mind was further also focused on the task by having a request from our local organic shop to exhibit our pedal powered washing machine during 'Do-it-Yourself Week'. In this new project and also not to exclude those without welding equipment I decided to make wooden supports for the bicycle.

A Broken Washing Machine Doesn't Automatically Mean Goodbye

The most frequent reasons for machine failure is of an electrical or electronic nature. Neither of these preclude using it, as long as the drum is watertight. Even if you don't already own a machine I can guarantee that one of your neighbours, friends or family has at least one of them in their garage. Due to the heavy nature of these beasts, most people choose not to dump them but to leave them alone hoping that one day someone just like you will come along. The good news too is that you won't need all the heavy stuff, so you will be able to remove it with impunity before loading it up. In the next article we will go into detail on what to remove.

washing machine conversion to pedal power


What better way to do the laundry than pedalling in the garden on a sunny day! Below: Have Washing Machine will Travel - a whole new career as an ambulant laundryman has opened up to me!

washing machine conversion to pedal power


Introduction - Know your machine

Before we start with the hands-on conversion we should familiarise ourselves with the configuration of the drive train of our own machine. This might sound complicated but in essence, this just means 'what makes the machine go round' and we need to know this so that we set up the machine and the bicycle on the correct side. Our bicycle is going to power the machine via the chain and thus a chain wheel (sprocket) will need to be attached to the side of the washing machine drum which was originally driven by the electric motor.

In the case of a front-loading machine, the drum is driven from the rear, so the bicycle is placed behind the machine.

washing machine conversion to pedal power


On a top-loader, it is less evident and so we need to determine where the washing machine's transmission is located. This is done simply by tipping it up and looking underneath.

Broken washing machine - conversion to pedal power

Once we know where the drive is, we can establish which way round the machine will have to face for the drive to function. Here below in close up you can see the motor on the right of our machine.

washing machine conversion to pedal power - how to

Additional Materials:



PALLET

In order to create a neat laundry set up, that functions well, looks good and can be moved and relocated efficiently, I made this design to fit on a standard European wooden shipping pallet size 140 x 80  or   55" x 31½". These pallets are normally readily available but if you can only find the standard US size grocery pallet of 42" x 40" then join two of these together and saw off any excess to neaten.

washing machine conversion to pedal power - how to


Using a pallet means that if, as in our case, you would like to use the machine in the garden or where there are uneven surfaces, the two machines will always be on the same foundation. Plus, the additional height provided by the pallet makes it much easier to drain the water from the machine.

BICYCLE

Living by the seaside means that we have a plethora of discarded materials that holidaymakers leave behind, usually around the recycling bins. This includes everything from furniture and bicycles to kittens and dogs! As people around here are great recuperators, this means that everything including the pets get rehomed. Here below you can see our latest crop of bikes, on a bumper day we can get four or five at one pickup point.

Recuperating bicycles for use - pedal powered washing machine



Recuperating bicycles parts for pedal powered washing machine
When choosing a bicycle to power your washing machine, remember that you do not need tyres or even wheels! The bare essentials would be a comfortable seat, a sturdy frame, handle bars, pedals and chain - a bell is fun particularly if you are expecting kids to help with the laundry!

In addition you will also need a second chain wheel (see left) and an additional length of chain. This is another reason to collect a couple of bicycles before you start your conversion. Remember that additional and unused components maybe of use for other projects or repairs.


TOOLS & EQUIPMENT

All the work involved in this conversion can be achieved with hand tools but it might be a good idea to invest in at least one power tool just to save time and effort. I work on the premise that tools are a great investment and that if you are going to consider DIY then they are essential. Similarly Safety Equipment is also a necessity, in particular when handling heavy objects and using power tools. Buying these items has an initial outlay but if you buy wisely these will last you for years of projects, for example my current electric drill is well over ten years old.

Electric Drill - Two of my favourite makes are Makita and Black & Decker
Set of Bits for the Above
Wood Saw
Set of Spanners
Range of Screwdrivers
Pliers, Drift or Chain Splitting Tool
Hammer
Centre Punch
Tape Measure
Safety Gloves, Boots and Glasses
Metal File
Tri Square
Additional if Possible:
Jigsaw with blades for sheet metal

Wood Screws, Nuts, Bolts, Washers and Wood Glue

..and here's the film:



washing machine conversion to pedal power
In the next article (link below) I will be looking at taking the machine apart, removing unnecessary components and the initial stages of the conversion to pedal power.

If you read this article and found it interesting then share it with your friends on social media or suchlike. Please also feel free to ask questions and or make comments and if you found this helpful and would like to support this site you can always Buy Me a Coffee at ko-fi.com

You can also find all my films Youtube and also now on Odysee

Until next time and from a sunny day in Normandie,

Cheers, Andy

© Andy Colley 2022


RELATED ARTICLES

Convert Your Washing Machine to Pedal Power - Part 2 Break Up to Make up

This is the really easy, fun part for me and it's a great way to start because it is going to familiarise you with your washing machine and how it works. In this section we are going to figure out what bits we can take off, what to ignore and what components are....read more

How to Convert your Washing Machine to Pedal Power 1 - The Basic Model (Front-loader)

Many years ago now, we heard a radio report on a guy who had built his own pedal-powered washing machine. We both decided that once our own electrically-powered machine developed an irreparable fault, we would convert it. In fact this is what we have been doing systematically with all our electrical appliances, as they breakdown. We divide them into unnecessary, (the case of the hair-dryer is a good example of this, its only function being an extra aid to heat up cold baby pigeons) or we convert them to human-powered. The following appliance has now been running manually (or rather, by being pedalled), for over four years and we would recommend the conversion to anyone who wants clean clothes, healthy exercise, a well watered flowerbed and help in getting off the grid.

Please note in this simplified version of our pedal-powered machine there is some welding involved, both for the pinion and the  bicycle supports. However, in Part Two, (the modified version), the transmission layout does not require any welding and the bike supports could of course be fabricated from timber. In effect, the modified version worked better but all of the steps needed to complete the project, excepting the transmission, are contained within the following. I also wanted to show how I developed the idea, I think it is a useful exercise both for myself and to share with others that I show how the design process works. In the event, with this first version I got the feel for the effect of a full washing load versus the effort required to pedal.

Note 2 - I have recently completed a 'new' pedal-powered washing machine as this one finally sprung a leak after years of great service. The new one is a top loader and also has wooden stands. Due to requests from subscribers, I am writing this project up in step-by-step detail. There are also tips on removing and recuperating materials and complete photographic documentation of each step in the conversion. The first in this series of what will probably comprise 5 articles with their respective films has just been published and is available through the link at the end of this article.

How to make a pedal powered washing machine
Test-drive with the approval of the fantails!

The Backstory

The electronic fault that arose in our automatic washing machine rendered it useless - an extremely frustrating but frequent problem in today’s world. I knew that the machine was watertight and that there was no problem with the rest of its mechanics and hence I started to think about doing away entirely with the electric motor and all the fancy pumps and stuff and converting the machine to human power.

Pedal power was the ideal choice as the washing machine functioned by the drum rotating with the laundry, water and detergent within it and leg power was much greater than arm power - and could keep going longer. The rotary motion of a bicycle was perfectly suited to this requirement.

A Word About Tools

All the work involved in this conversion can be achieved with hand tools but it might be a good idea to invest in at least one power tool just to save time and effort. I work on the premise that tools are a great investment and that if you are going to consider DIY then they are essential. Similarly Safety Equipment is also a necessity, in particular when handling heavy objects and using power tools. Buying these items has an initial outlay but if you buy wisely these will last you for years of projects, for example my current electric drill is well over ten years old.

Electric Drill - Two of my favourite makes are Makita and Black & Decker
Set of Bits for the Above
Wood Saw
Set of Spanners
Range of Screwdrivers
Pliers, Drift or Chain Splitting Tool
Hammer
Centre Punch
Tape Measure
Safety Gloves, Boots and Glasses
Metal File
Tri Square
Additional if Possible:
Jigsaw with blades for sheet metal

Wood Screws, Nuts, Bolts, Washers and Wood Glue


conversion of a broken washing machineMethod


The first step I made after I had moved the machine into an outbuilding was to investigate the layout of its moving parts. This I did by removing the rear panel where the motor, pulleys and flat drive belt could be clearly seen.

At the time of removing the rear panel I decided to also remove the massive ballast weights (see above) that were bolted to the machine; these are fitted to help absorb vibrations caused by off-centre loads in the machine especially during the spin-drying cycles. I also lifted off the top of the machine so that I could take out any other superfluous items.


washing machine conversion to pedal power pinion and belt driveI decided to keep everything as simple as possible choosing to weld a small gear from the rear hub of a bicycle to the end of the electric motor shaft, a chain would then connect this gear to that of the pedal crank of the bicycle and the original pulley/flat belt transmission would remain.

converting a broken washing machine to bike powerI wanted the two machines to be on a common base and this I chose to be a wooden pallet (of course) this was a non-standard sized one of  140cm x 80cm (55” x 31½”). I could fit the two machines on this pallet because I’d decided that the chain from the pedal crank would go forward to a gear on the electric motor shaft, the limiting factor became that of the proximity of the pedals to the side of the washing machine. I established that I required a clearance of 75mm (3”) between the pedal at its closest approach. to the machine to allow me an unobstructed pedal action.

Now I had obtained the layout and positions of the two machines with respect to each other, I had to decide a means of supporting the wheel-less bicycle. As luck would have it, one of the shops that furnish me with wooden pallets had just thrown out a steel framed, wheeled dolly used to transport a ride-on lawnmower crate. This I cut up in the workshop to furnish me with the necessary steel angle for the support frames and four castors which I subsequently used in the fabrication of my cross-cut saw table. (link at end of post)

Converting a washing machine to bicycle power

How to make a pedal powered washing machine

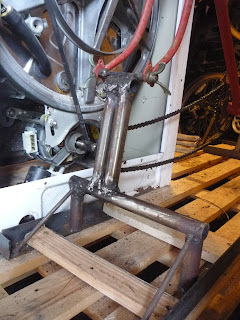

I welded two cradles from the steel angle to support the bicycle at the front and rear dropouts (the points where the wheels fit). The rear cradle was a  right-angled triangular frame and the front cradle comprised two vertical tubes welded to a base frame both had  a 10mm threaded bar welded at the cradle top to fit into the dropout. The cradles were screwed in place to the pallet, the critical positions for these cradles were at the proper distance between the front and rear dropouts and at the correct lateral position for the bicycle’s pedal crank to align with the gear on the motor shaft.

converting a broken washing machine to pedal power
When the bicycle had been lowered onto the threaded bar ‘axles’, it was secured to the cradles using 10mm nuts, I found it necessary to put a spacer tube between the rear dropouts to give the nuts something to tighten up to, otherwise the process of tightening would squeeze the frame/fork tubes out of shape instead of clamping them.

The drive chain could then be attached.

Pedal powered washing machine transmission

I had already noted that the force from the drive chain was twisting the drum on its support springs so, to avoid the problem of the chain coming off, I forced two wooden wedges between opposite sides of the drum and the outer walls of the machine.

After a quick pedal to see if it worked I prepared for the first wash.


pedal powered washing machine inletThe Wash Cycle (pun intended)


It was only when I started to put the water into the machine for the first wash that I realised the need for a modification, that being the fact that pouring in water into the machine via the drawer destined for the powder was too slow - if I went too quickly the water just overflowed out of it. As the top of the machine was no longer in place, I sawed the top off the drawer compartment permitting a larger opening for the water.

I was surprised at how easy it was to pedal the full machine. In fact it was too easy due to the speed reduction of the belt drive between the motor shaft and the pulley on the drum. The reduction meant that: at normal pedaling speeds the drum was moving very slowly and I found it very hard to pedal when there was little to no resistance. Nevertheless, the initial laundry results were good and so the logical step was to alter the gearing to a more practicable level.

Emptying the Machine

Normally, an electric pump empties the water from the machine and discharges it via a flexible hose down the drain. Washing machine pumps are of the centrifugal type, a vaned rotating impeller pushes the water up the pipe. If one lowers the pipe to below that of the water in the drum then the water will flow out, simply by the effect of gravity. I, therefore, used this simple technique, the additional height due to the machine being sited on the pallet made it easier for it to be completely emptied. I used the waste water on the flower borders in front of the house so I collected the water in watering cans and buckets.

Using washing machine water for flower beds
There you have it, Mark One of our pedal-powered washing machine. We continued using this format for two washes each until we got a good feel of what I needed to change. In Part Two I will look at the add-on modifications for this basic machine, which both made it easier to pedal and gave us something of a 'spin-cycle'.


In the meantime though and if you'd like to, sit back and watch our film.



If you read this article and found it interesting then share it with your friends on social media or suchlike. Please also feel free to ask questions and or make comments and if you found this helpful and would like to support this site you can always Buy Me a Coffee at ko-fi.com
You can also find all my films Youtube and also now on Odysee

Until next time and from a sunny day in Normandie,

Cheers, Andy

© Andy Colley 2015
